Pro-X - 01.1342.C Forged Piston Kit 76.79mm "C" Size For Honda CRF250R 2010-2013

Pro-X - 01.1342.C Forged Piston Kit 76.79mm "C" Size For Honda CRF250R 2010-2013

Year  Make  Model
2010 - 2013  HONDA  CRF250R
Compression Ratio 13.2:1
Forged Piston


Bore Diameter (OEM)  76.80
Compression Height  11.00
OEM Reference No  13101-KRN-A40
Piston Boss Spacing  16.80
Piston Diameter  76.79
Piston Head Type  Flat with Raised Top
Product Types  Piston Kits
Skirt Coating  None
Total Height  33.40
Wrist Pin Bore Diameter  16.00

PLEASE DOUBLE CHECK SIZE BEFORE ORDERING

Benefits & Features:

-FORGED pistons in A, B, C and D sizing for Nikasil/Plated Cylinders
-Interchanges directly with OEM Parts

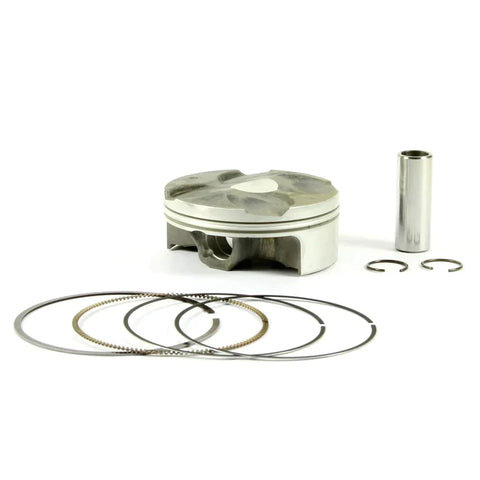

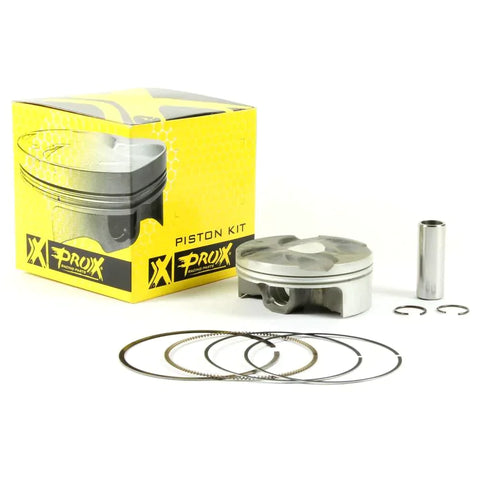

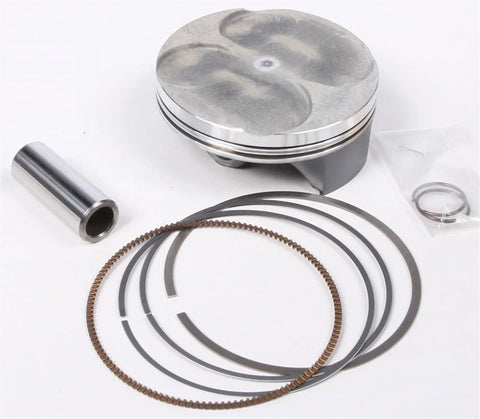

-Piston kit comes with piston, wrist pin, circlips and ring(s).

ProX Piston Kits are comprehensive coming complete with: Piston / Ring Kit / Wrist Pin / Cir Clips. ProX also offers oversized piston options in order to follow manufaturer Piston to Cylinder Wall clearances. ProX pistons are precision machined on the latest, state of the art CNC equipment. The same low-expansion, low-friction piston alloy is used as is used for all major Japanese engine manufacturers. ProX Piston Kits are a first class solution to replace the original piston in your Motorcycle, Scooter, Moped, ATV, Personal Watercraft, etc.!
