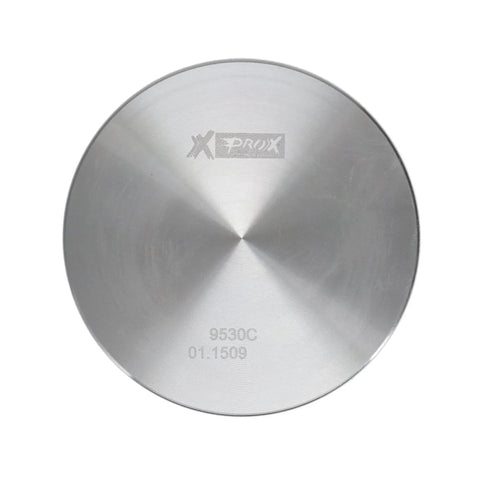

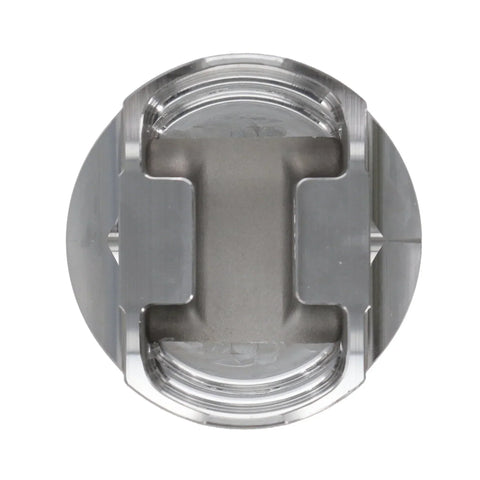

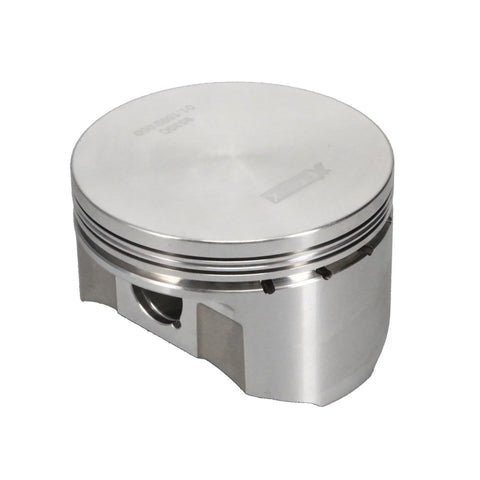

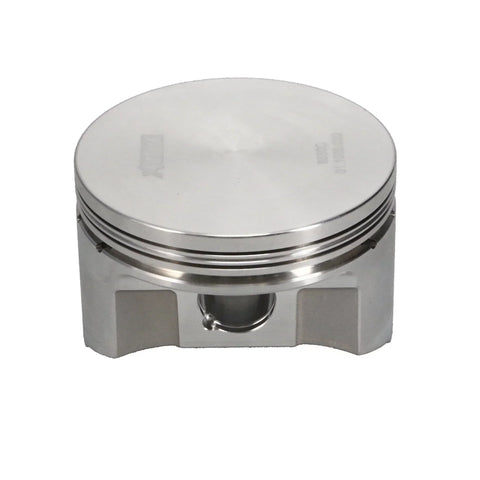

Pro-X 01.1509.000 Piston Kit Standard Bore 89.00mm For Honda XR500R 1981-1984

Pro-X 01.1509.000 Piston Kit Standard Bore 89.00mm For Honda XR500R 1981-1984

Year  Make  Model
1982  HONDA  XL500R
1981 - 1984  HONDA  XR500R

Bore Diameter  89.00
Bore Diameter (OEM)  89.00
Compression Height  18.50
Material  Forged Piston
OEM Reference No  13101-429-003
Piston Boss Spacing  27.30
Piston Head Type  Flat
Piston Oversize  STD
Product Types  Piston Kits
Skirt Coating  None
Total Height  58.50
Wrist Pin Bore Diameter  21.00

PLEASE DOUBLE CHECK SIZE BEFORE ORDERING

Benefits & Features:

-FORGED pistons in A, B, C and D sizing for Nikasil/Plated Cylinders
-Interchanges directly with OEM Parts
-Piston kit comes with piston, wrist pin, circlips and ring(s).

ProX Piston Kits are comprehensive coming complete with: Piston / Ring Kit / Wrist Pin / Cir Clips. ProX also offers oversized piston options in order to follow manufaturer Piston to Cylinder Wall clearances. ProX pistons are precision machined on the latest, state of the art CNC equipment. The same low-expansion, low-friction piston alloy is used as is used for all major Japanese engine manufacturers. ProX Piston Kits are a first class solution to replace the original piston in your Motorcycle, Scooter, Moped, ATV, Personal Watercraft, etc.!
