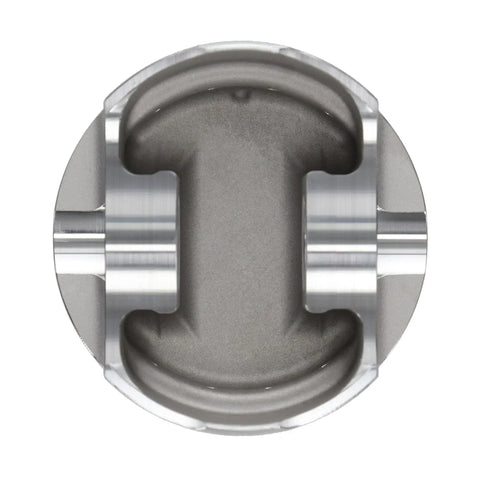

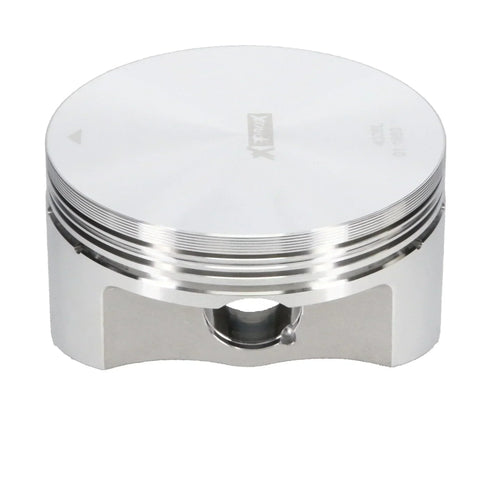

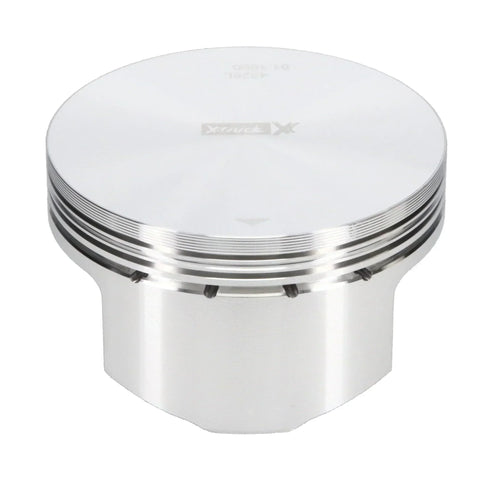

Pro-X 01.1660.100 Forged Piston Kit 1.00mm Oversize to 101.00mm For Honda XR650L

Pro-X 01.1660.100 Forged Piston Kit 1.00mm Oversize to 101.00mm For Honda XR650L

Year  Make  Model
1993 - 2009  HONDA  XR650L
2012 - 2021  HONDA  XR650L

Bore Diameter  101.00  (+1.00mm Oversize)

Compression Height  17.10
Material  Forged Piston
Piston Boss Spacing  32.90
Piston Head Type  Flat
Piston Oversize  STD
Product Types  Piston Kits
Skirt Coating  None
Total Height  56.00
Wrist Pin Bore Diameter  24.00

PLEASE DOUBLE CHECK SIZE BEFORE ORDERING

Benefits & Features:

-FORGED pistons in A, B, C and D sizing for Nikasil/Plated Cylinders
-Interchanges directly with OEM Parts
-Piston kit comes with piston, wrist pin, circlips and ring(s).

ProX Piston Kits are comprehensive coming complete with: Piston / Ring Kit / Wrist Pin / Cir Clips. ProX also offers oversized piston options in order to follow manufaturer Piston to Cylinder Wall clearances. ProX pistons are precision machined on the latest, state of the art CNC equipment. The same low-expansion, low-friction piston alloy is used as is used for all major Japanese engine manufacturers. ProX Piston Kits are a first class solution to replace the original piston in your Motorcycle, Scooter, Moped, ATV, Personal Watercraft, etc.!
