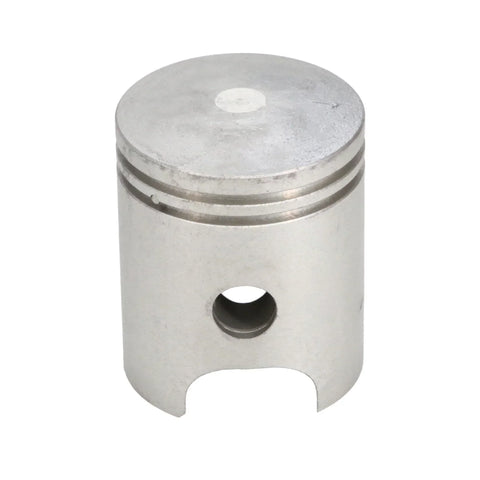

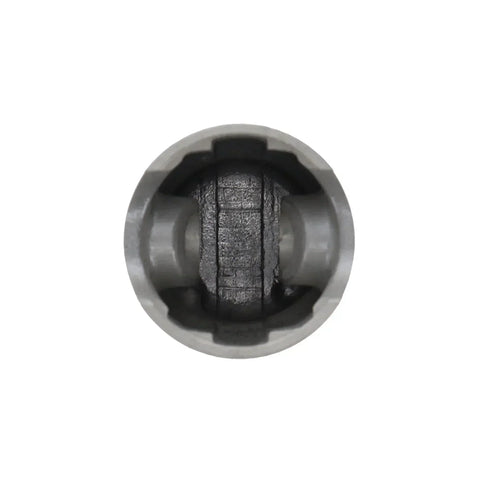

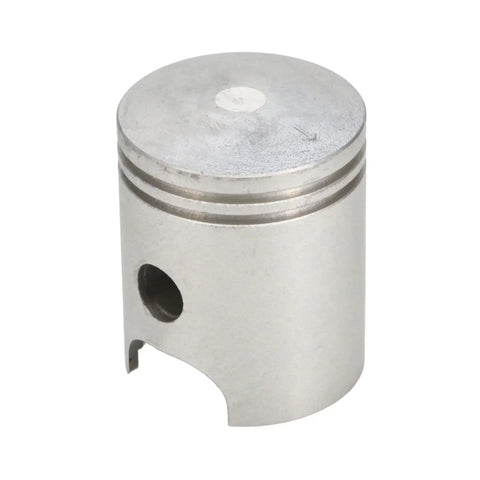

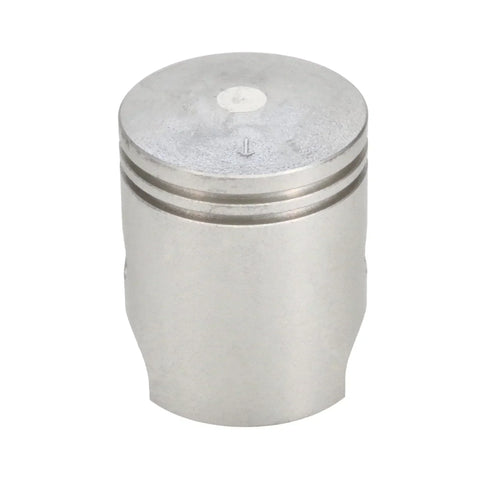

Pro-X - 01.2008.000 - Piston Kit, Standard Bore 47.00mm Yamaha PW80 1983-2006

Pro-X - 01.2008.000 - Piston Kit, Standard Bore 47.00mm Yamaha PW80 1983-2006


Year  Make  Model
1986 - 1990  YAMAHA  BW80
1983 - 2006  YAMAHA  PW80

Bore Diameter  47.00
Bore Diameter (OEM)  47.00
Compression Height  24.00
Material  Cast Piston
OEM Reference No  3E5-11631-00-97
Piston Boss Spacing  17.00

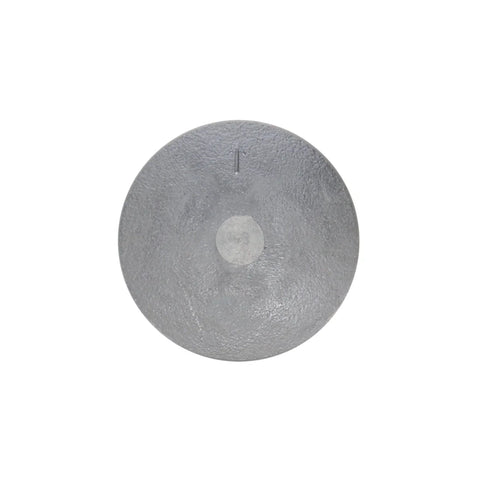

Piston Head Type  Dome
Piston Oversize  STD
Product Types  Piston Kits
Skirt Coating  None
Total Height  59.00
Wrist Pin Bore Diameter  12.00

PLEASE DOUBLE CHECK SIZE BEFORE ORDERING

Benefits & Features:

-Cast pistons in A, B, C and D sizing for Nikasil/Plated Cylinders
-Interchanges directly with OEM Parts

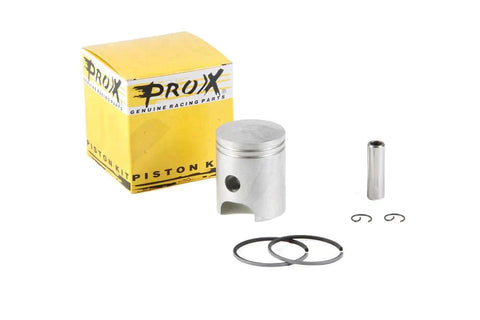

-Piston kit comes with piston, wrist pin, circlips and ring(s).

 Brand New

ProX Piston Kits are comprehensive coming complete with: Piston / Ring Kit / Wrist Pin / Cir Clips. ProX also offers oversized piston options in order to follow manufaturer Piston to Cylinder Wall clearances. ProX pistons are precision machined on the latest, state of the art CNC equipment. The same low-expansion, low-friction piston alloy is used as is used for all major Japanese engine manufacturers. ProX Piston Kits are a first class solution to replace the original piston in your Motorcycle, Scooter, Moped, ATV, Personal Watercraft, etc.!
