Pro-X - 01.3420.A Piston Kit "A" Size 89.96mm 12.2:1 For Suzuki LTZ400 2003-2014

Pro-X - 01.3420.A Piston Kit "A" Size 89.96mm 12.2:1 For Suzuki LTZ400 2003-2014

Year  Make  Model
2004 - 2008  ARCTIC CAT  DVX 400
2003 - 2006  KAWASAKI  KFX400
2003  KAWASAKI  KLX400R
2000 - 2022  SUZUKI  DR-Z400
2003 - 2009  SUZUKI  LT-Z400 QUADSPORT Z
2012 - 2014  SUZUKI  LT-Z400 QUADSPORT Z
2010 - 2011  SUZUKI  LT-Z400 QuadSport Z
2015 - 2018  SUZUKI  LT-Z400 QuadSport Z


Forged Piston, 12.2:1 Compression

Bore Diameter (OEM)  90.00
Compression Height  15.30
OEM Reference No  12111-29F00-0F0
Piston Boss Spacing  23.50
Piston Diameter  89.96
Piston Head Type  Flat
Product Types  Piston Kits
Skirt Coating  None
Total Height  47.50
Wrist Pin Bore Diameter  20.00

PLEASE DOUBLE CHECK SIZE BEFORE ORDERING

Benefits & Features:

-FORGED pistons in A, B, C and D sizing for Nikasil/Plated Cylinders
-Interchanges directly with OEM Parts

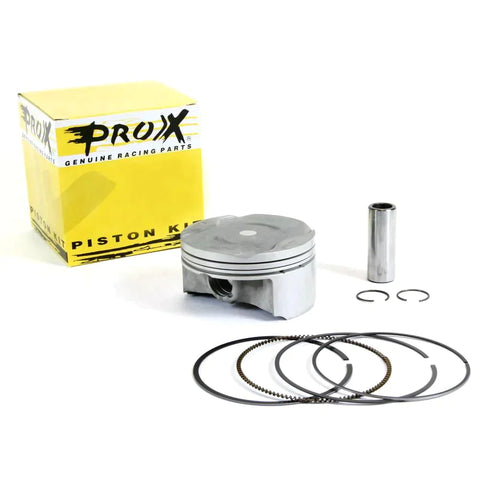

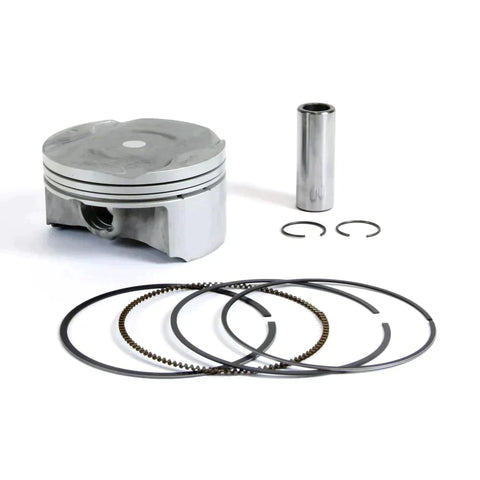

-Piston kit comes with piston, wrist pin, circlips and ring(s).

ProX Piston Kits are comprehensive coming complete with: Piston / Ring Kit / Wrist Pin / Cir Clips. ProX also offers oversized piston options in order to follow manufaturer Piston to Cylinder Wall clearances. ProX pistons are precision machined on the latest, state of the art CNC equipment. The same low-expansion, low-friction piston alloy is used as is used for all major Japanese engine manufacturers. ProX Piston Kits are a first class solution to replace the original piston in your Motorcycle, Scooter, Moped, ATV, Personal Watercraft, etc.!
