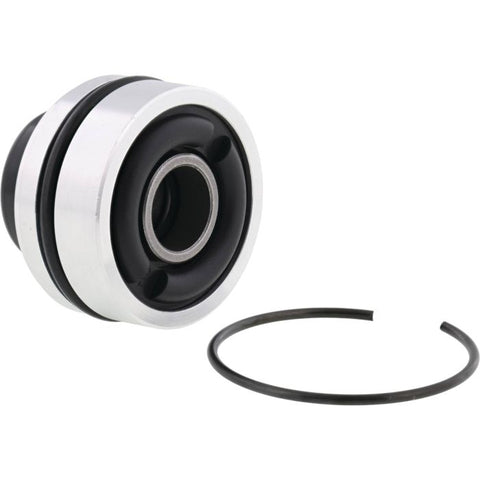

Rear Shock Seal Head Kit · PM-6N7XGXL5
Rear Shock Seal Head Kit · PM-6N7XGXL5
Vehicle applications
Beta RR 2T 125 Race 2023-2026
Beta RR 2T 200 Race 2023-2026
Beta RR 2T 250 Race 2023-2026
Beta RR 2T 300 Race 2023-2026
Beta RR 4T 350 Race 2023-2026
Beta RR 4T 390 Race 2023-2026
Beta RR 4T 430 Race 2023-2026
Beta RR 4T 480 Race 2023-2026
Beta RR-S 4T 390 Special Edition 2024-2026
Beta RR-S 4T 500 Special Edition 2024-2026
Beta RX 2T 300 2023-2024
Honda CR125R 1993-2007
Honda CR250R 1995-1996
Honda CR500R 1995-2001
Kawasaki KLX450R 2008-2009
Kawasaki KX125 2000-2005
Kawasaki KX250 2000-2007
Kawasaki KX250F 2004-2005
Kawasaki KX450F 2006-2008
Suzuki RMZ250 2004-2006
Yamaha YFZ450R 2009-2026
Yamaha YFZ450X 2010-2011
Yamaha YZ250F 2012-2013
Product details
Rear Shock Seal Head 46x16
Features
- All seal heads are made from 6061-T6 aluminum to save weight
- Air bleed hole helps remove air from the oil reservoir during seal head installation
- Oil seal utilizes a double lip design and a low friction elastomer. This gives the seal head additional dirt exclusion and yet maintains a low drag (low friction) seal
- The dust seal utilizes a spring type exclusion seal to maintain constant pressure and assure good dirt and contaminant exclusion over the life of the seal head
Kit contents
| Component | Quantity per kit |
|---|---|
| O'Ring | 1 |
| Seal | 3 |
| Snap Ring | 1 |
| Split Bushing | 1 |
| Temporary Part for Research | 1 |
| Washer | 1 |
